Carrier Air Handler 3 Ton - $500
Cr302 near CR305
condition:
new
make / manufacturer:
Carrier
QR Code Link to This Post

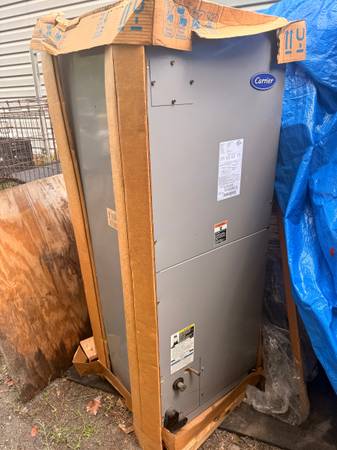

FA4CNF036 New In Box.
This model is designed to handle both Puron® (R-410A) and R-22 refrigerants (when using the correct piston). Price is firm. Pick up in Bunnell or can deliver for fee. Text six09six3588four3
***To convert your Carrier FA4BNF036 air handler from an R-22 to an R-410A system, you will need a #73 piston (often labeled as having an orifice size of \(0.073\)" or \(0.074\)"). This specific piston size is designed to properly restrict and meter R-410A for a nominal 3-ton to 3.5-ton system capacity. [1, 2, 3]
The conversion requires several specific actions and considerations:
• Piston Replacement: You cannot use your old R-22 piston. R-410A operates at much higher pressures, and using an R-22 piston will cause incorrect superheat and performance issues. [1]
• Teflon Ring Orientation: When installing the new R-410A piston, ensure the side with the white Teflon ring faces downwards towards the evaporator coil, never upwards. [1]
• System Flushing: Since R-22 uses mineral oil and R-410A requires POE oil, the system lines and indoor coil must be thoroughly flushed to prevent compressor burnout. [1]
Alternatively, to achieve better operating efficiency, many technicians opt to install a matched R-410A TXV (Thermostatic Expansion Valve) rather than a fixed piston. [1]
